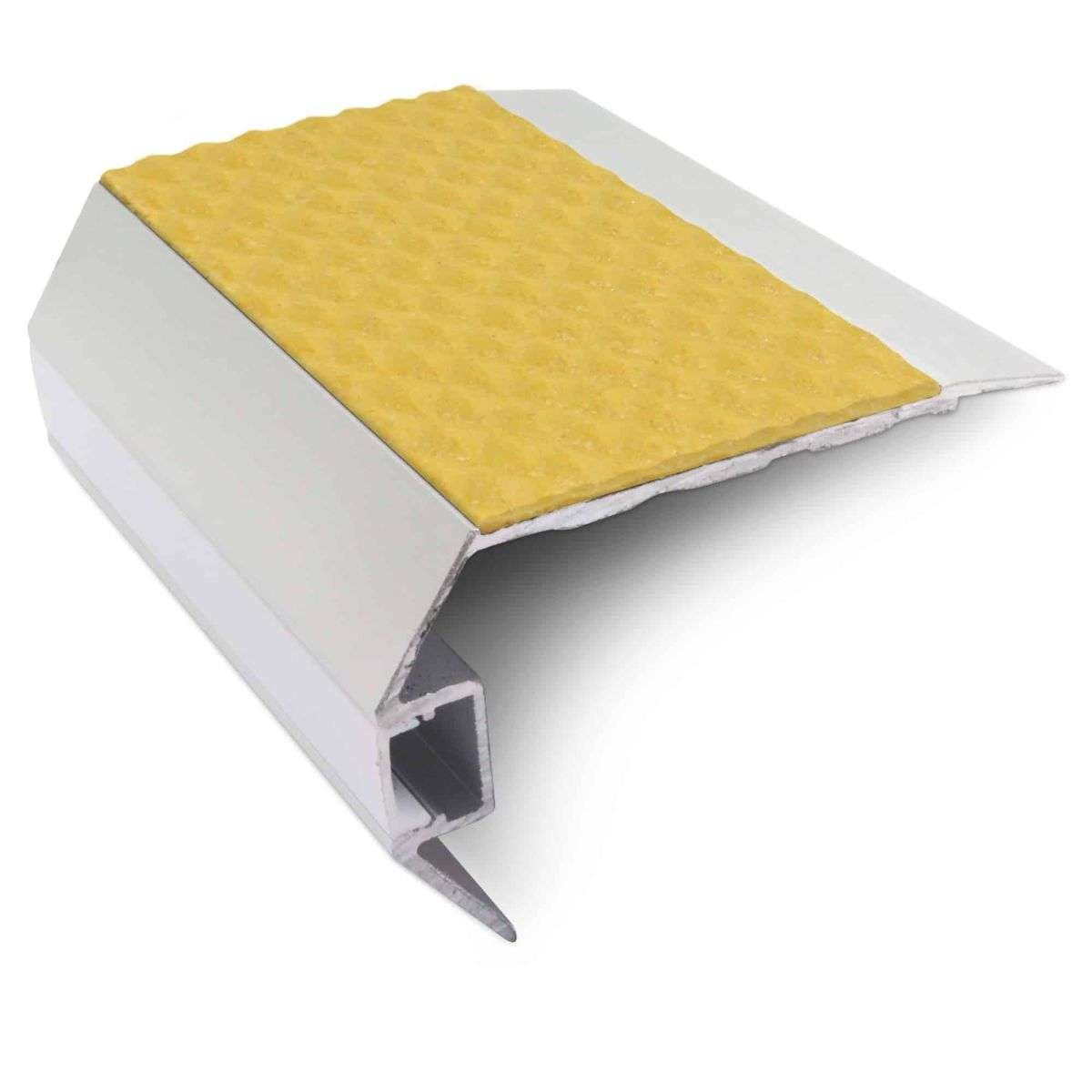

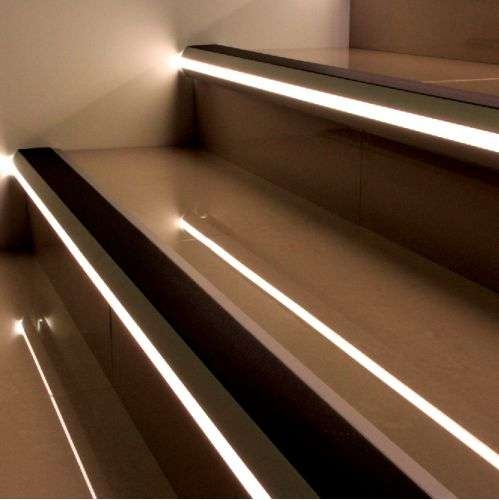

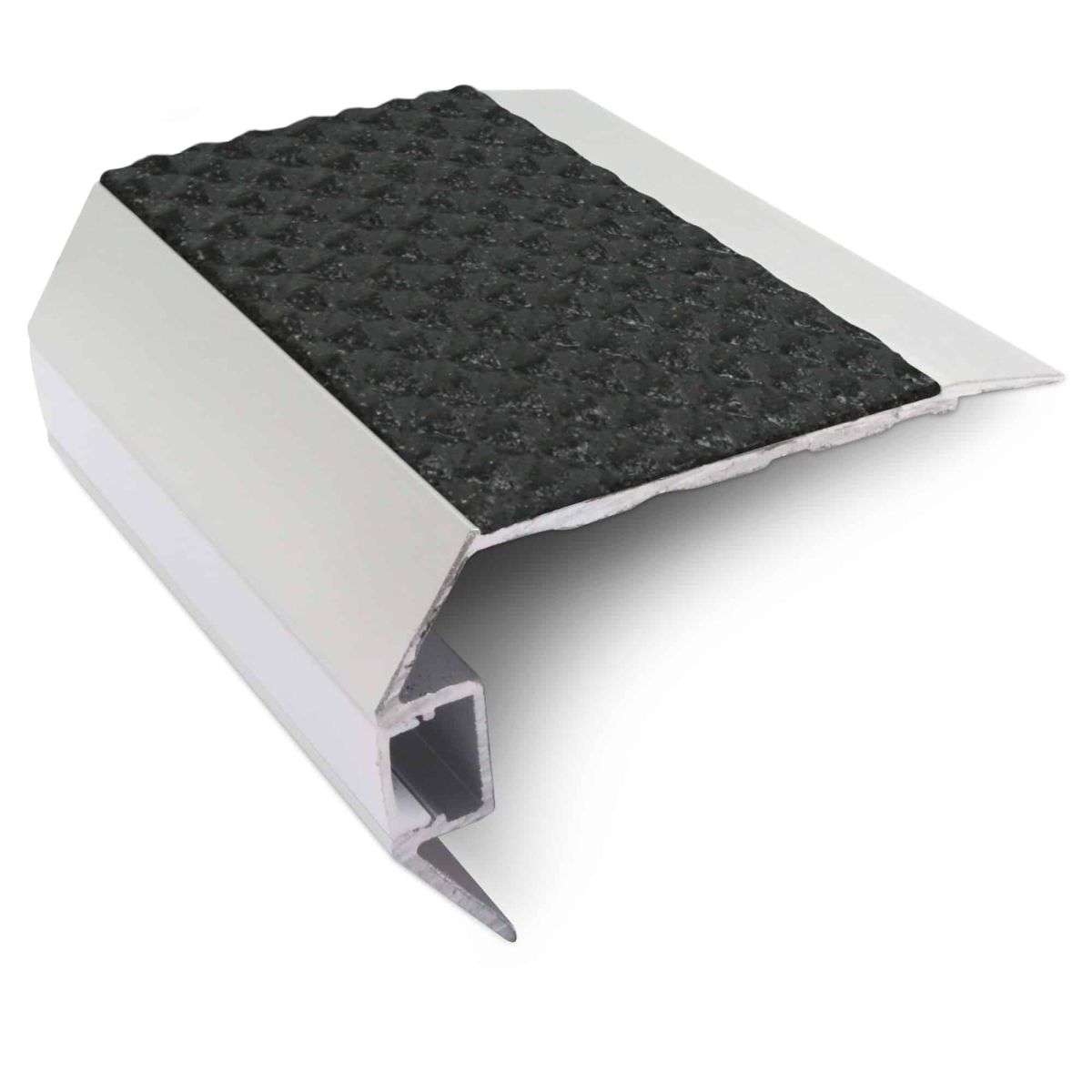

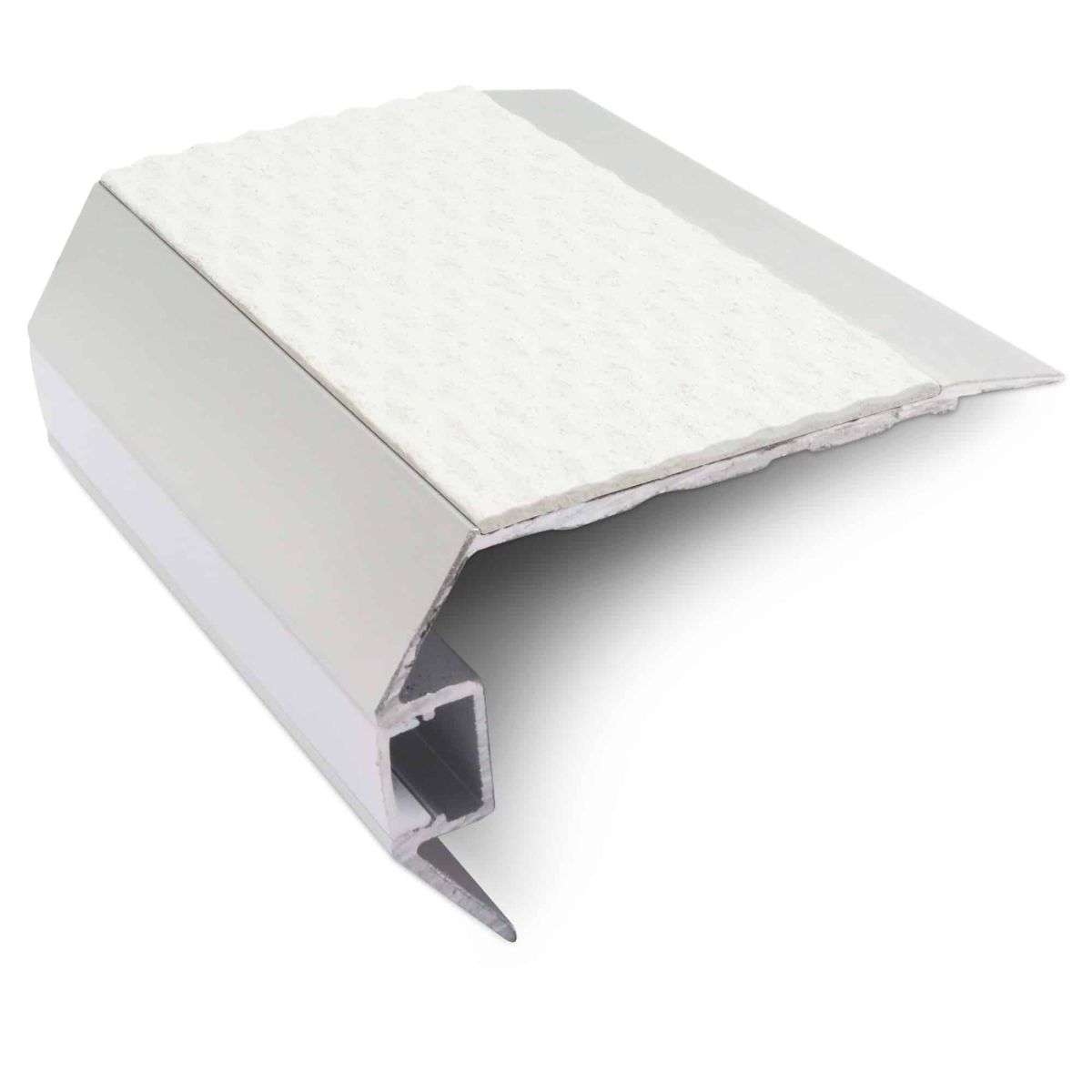

The NSLR50 77.5 x 48.5mm Vision Light Out Stair Nosing is a durable, commercial-strength aluminium profile designed to offer optimum stair-edge safety plus an integrated LED light. Designed in a light-out configuration, the light is compatible with Vision CCT, RGB and standard LED systems, projecting stylish light straight out from the edge of the stair. Ideal for architectural lighting in theatres, cinemas, office, and sophisticated venues.

You will normally get the profile in anodised matt silver finish, but other finishes are available on request. Step illumination is enhanced and glare is reduced by the use of a frosted polycarbonate diffuser, which ensures evenly diffused light.

The non-slip PVC insert allows for better grip in busy environments. Usually, steel profiles are manufactured in lengths of 2.8 metres, but bespoke cutting and drilling services are available. The NECS50 end caps (in 81 Matt Silver) can be ordered to complete the installation. Most standard LED tapes and drivers are compatible (not included)

Main Characteristics

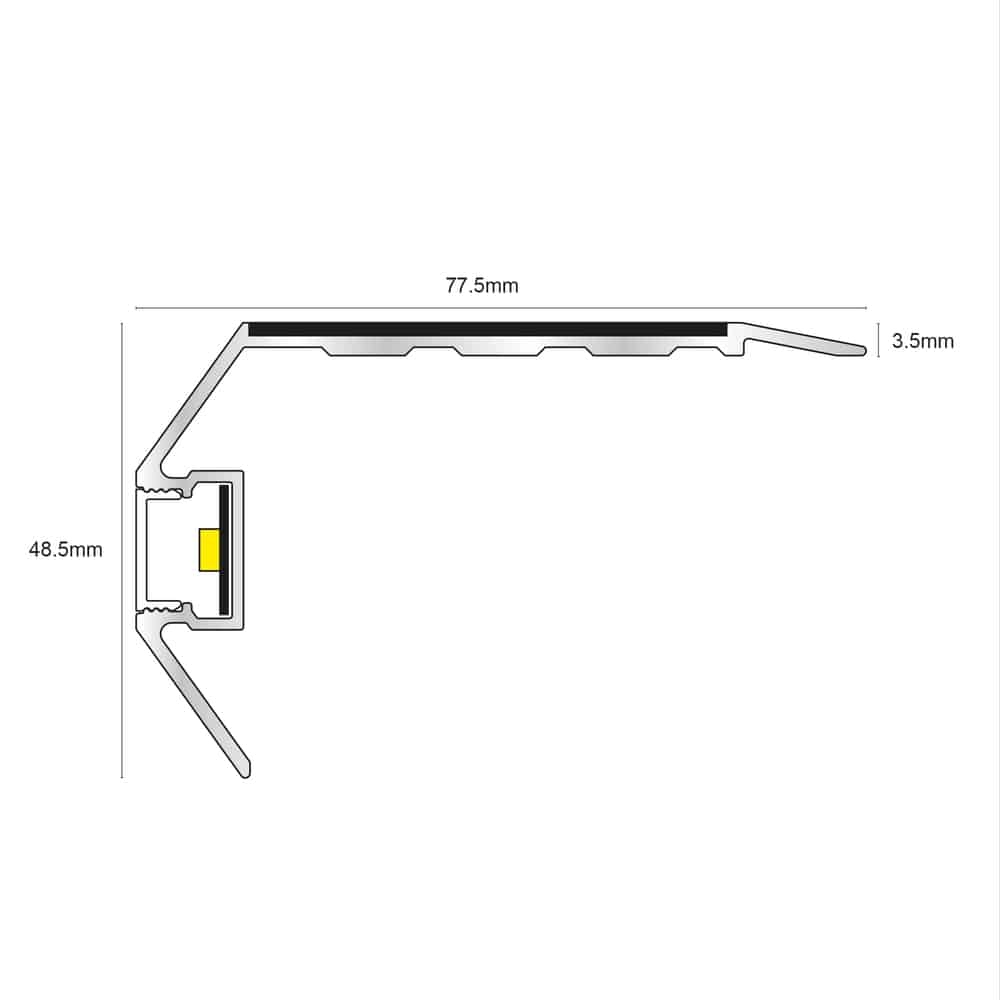

• Size of tread is 77.5 mm and riser is 48.5 mm
• LED lights on the outside of vision light out.
• Works with CCT, RGB and standard LED tape.
• Safety improved with non-slip PVC insert.
• Anodized matte silver finish (custom colors upon request).
• Frosted polycarbonate diffuser for even light distribution.
• Available in lengths of 2.8m and can be custom cut and drilled.
• End caps of NECS50, 81 Matt Silver available ( sold separately ).
• Ideal for commercial spaces and building designs.
• Compatible with standard LED drivers and tapes sold separately.
