• The professional-grade aluminium door threshold is adjustable in height and tiltable on request. It is supplied with small and large clips to adapt to different existing floor heights. It is suitable for 40mm doors.
• The threshold finishes any type of floor perfectly.
• Used for joining wood, laminate, tiles, and other flooring.
• You can use a hacksaw to cut these profiles to the required length and then attach them to wood or concrete subfloors with nails or screws.

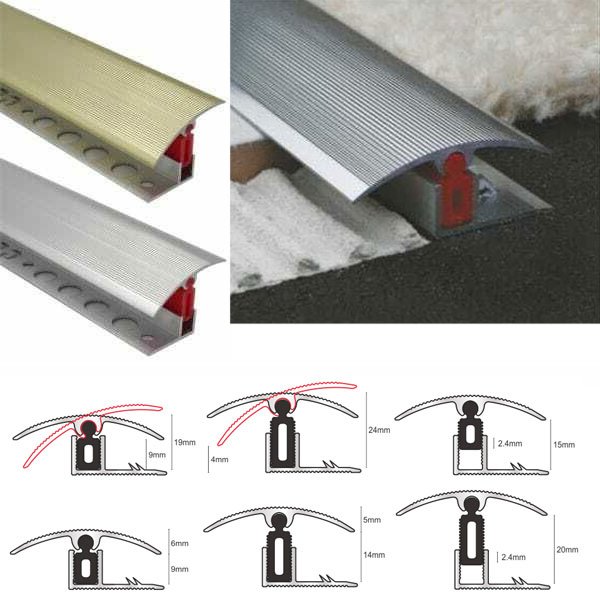

• Take a look at the technical drawings to see a few height options available for the profile.

Installing.

1. The cover must be wide enough to cover the distance between the two floorings.
2. Aluminium bases can be mechanically fixed or secured with contact adhesive.
4. Add the appropriate size clips to the cover, 2-3cm away from the end, the rest evenly spaced.
5. Position the clips over the base and gently tap the clips down into the channel. Once located, once located use a rubber mallet to achieve the final position.

• The different flooring levels have a maximum height of 24mm.
• Floor coverings with a height ranging from 9mm to 20mm are covered.
• Compatible with All Kinds of Flooring.
• The system is easy to use and fit.
• You need screws for fitting.

Dimensions

• 920 millimeters by 40 millimeters.
